Grundfos

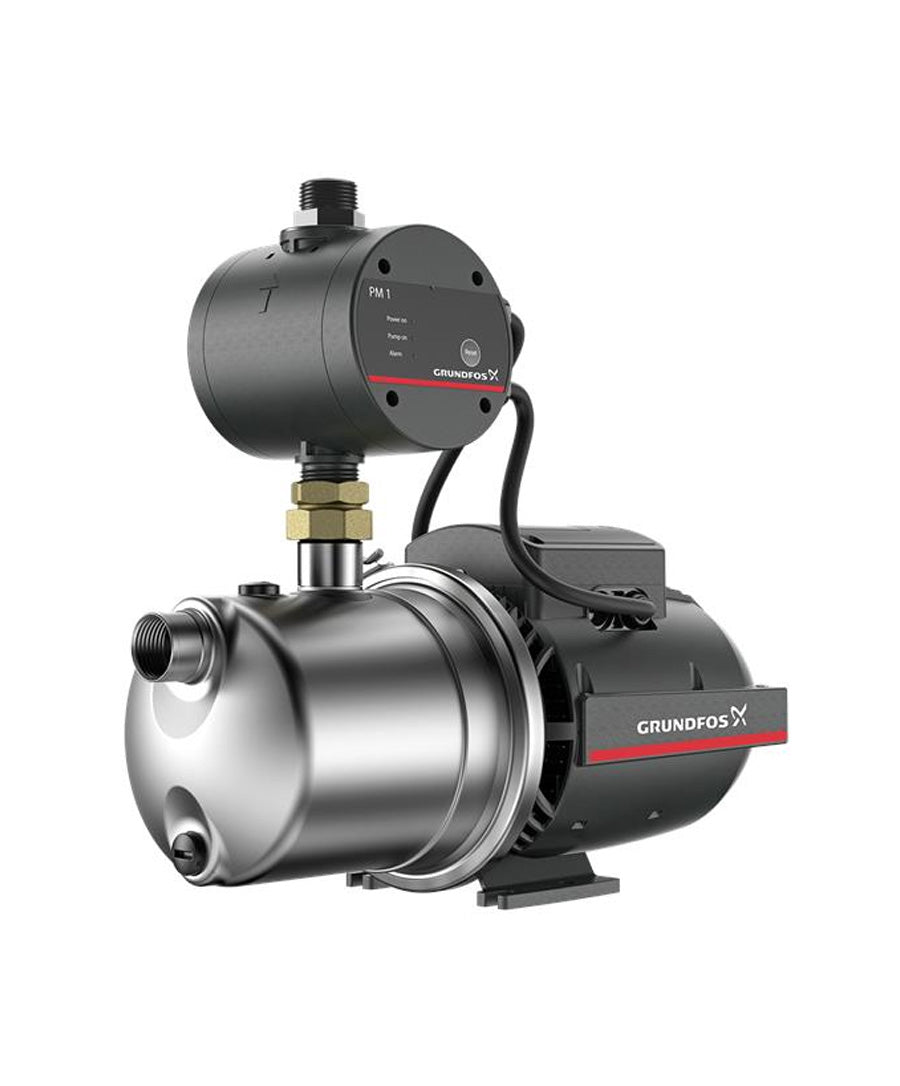

Jet Pump 4-54 PM1 1x230V 50Hz 1,5m

SKU: 99463900

$1,212.10
$0.00 $1,212.10
Sale Sold out
Tax included. Shipping calculated at checkout.

JP PM is a booster that consists of a pressure manager and a self-priming, single-stage centrifugal pump. JP PM is designed for various garden and domestic applications and has dry-running protection.

View full details

Features & Specifications

Technical

Rated flow: 4 m³/h
Rated head: 46 m
Primary shaft seal BBVP
Approvals: CE,WM,C-TICK
Curve tolerance:ISO9906:2012 3B
Pump version: A
Adjustable start pressure: N
Start pressure: 1.5 bar
Rated speed: 2800 rpm

Materials

Pump housing: Stainless steel EN 1.4301 / AISI 304
Impeller: Composite
Material code: A

Installation

Minimum ambient temperature: 0 °C
Max. ambient: 40 °C
Maximum operating pressure: PN 6 bar
Pump inlet: G 1
Pump outlet: G 1

Liquid

Pumped liquid: Water
Liquid temperature range: 0 .. 40 °C
Selected liquid temperature: 20 °C
Density: 998.2 kg/m³

Electrical data

Power input - P1: 1130 W
Rated power - P2: 0.746 kW
Mains frequency: 50 Hz
Rated voltage: 1 x 230 V
Rated current: 5.1 A
Starting current: 17.8 A
Rated speed: 2800 rpm
Capacitor size - run: 16 µF/450 V
Enclosure class (IEC 34-5): IP44
Insulation class (IEC 85): F
Length of cable: 1.5 m
Type of cable plug: AUS

Others

Net weight: 12 kg
Gross weight: 15 kg
Country of origin: CN
Custom tariff no.8413700900
